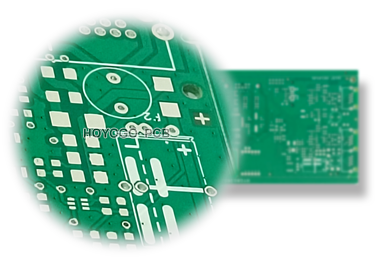

2 Layer Rigid PCB

Special Request:

1. KB A grade yellow core base material;

2. Solder Mask Thickness on Copper Edge: Min. 10um,

Solder Mask Thickness on Copper Surface: 10-30um,

The base material position is not allowed to exceed 40um.

Layer: 2L

Base Material: FR4

Board Thickness: 1.60mm

Final Copper Thickness: 1OZ

Surface Finished: HASL Lead Free

Unit Size(mm): 77.55*108.51
